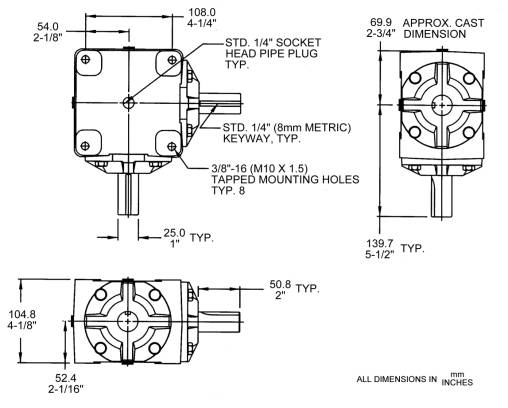

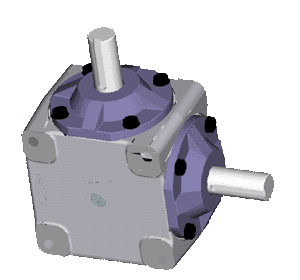

Specifications & Options
MODEL 211

RATIOS: STRAIGHT BEVEL1:1, 1.35:1, 1:1.35, 1.5:1, 1:1.5
SPIRAL BEVEL GEARS-1:1, 1.26:1, 1.35:1, 1:1.35, 1.5:1, 1:1.5
GEARS: CARBURIZED AND CASE HARDENED
SHAFTS: 1" (25mm) & 1 1/4" (30mm) DIAMETER STEEL
 HOUSINGS: GREY IRON WEIGHT: APPROXIMATELY 22 LBS
CAPS: ALUMINUM
LUBRICANT: 16 OZ AGMA 5EP GEAR LUBRICANT
Options: 1 1/4² diameter shafts.Special materials, gear ratios, shaft extensions, aluminum housing, grey iron caps, flanges and splines available upon request


·Clockwise (CW) and counter-clockwise (CCW) notations indicate the direction of rotation when facing that end of the shaft extension.

·Arrows shown on the drawings are over the top of shaft extensions

·The numbers shown adjacent to the shaft extensions are used to designate specific extensions when ordering.

·Shaft arrangements will also operate in the opposite direction as shown.
